Capacity Range upto 5000 kVA 3 Ph
Provides perfectly stable output even under severe conditions of unbalanced voltage conditions. Ideal to protect the electrical and electronic equipments from high and low voltage
| Input Voltage Range | 300-460V / 340-480V / 360-460V , AC 3 Ph |
| Output Voltage (3 Phase) | 415V AC |
| System Unbalanced | 4 wire: RYBN |
| Connections | Star |
| Operating Frequency | 47 to 53 Hz |
| Output Voltage Adjustable | 380 to 415V AC in 3 Phase |
| Output Voltage Regulation | +/- 1% (No Load) |
| Output Voltage Regulation | +/- 1% (Full Load) |
| Overload Capacity | 120% |
| Correction Rate | 60/25/15V per Sec-3 Phase |
| Waveform Distortion | Nil |
| Output Waveform | True Reproduction of Input |
| Insulation | Class F |
| Short Circuit Period & % | 300% for 250 Milli Sec. |
| Normal Operation Temp | 0°C to 45°C |
| Climate Conditions | 90% Rh Max. Non-Condensing at 35°C |

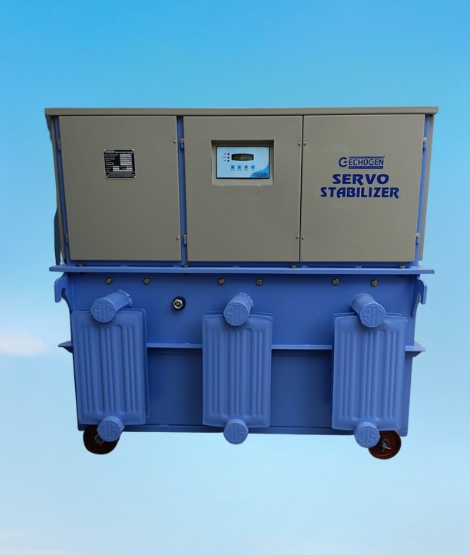

| Type of Cooling | Natural Oil cooled up to 5000 KVA |
| Mode of System | Full Automatic |
| System Construction | As per IS: 9815-1994 |
Protections
-
Single Phaseing Prevention
-
Output Electronic Over Load Protection
-
Phase Reversal Protection
-
Input Short Circuit Protection with MCB
-
Input Over Load Protection with MCB
-
Output Low Voltage Protection
-
Output High Voltage Protection
-
Audio Alarm for Protections
Programmable Controls
-
Display Scrolling - Auto / Manual,
-
Start / Stop Buttons
Programmable Control Timings
-
Over load Cutoff Time
-
Auto Restart Time
-
On & Off Delay Time
Salient Features
-
Quick response time 10 milli sec (half a cycle)
-
Very high efficiency above 98%
-
Excellent regulation as high as +/-0.5%
-
Micro controller” controlled system
-
Wide input range of operations & High speed of correction
Programmable Parameters
-
Output voltage set (210-245V)
-
Output Low Voltage Cut off
-
Output High Voltage Cutoff
-
Input Low on LCD Display
-
Input High on LCD Display
-
Sensitivity / Regulation
-
Over Load Cutoff
-
CT full scale
Indications
-
Mains Input on 3 LED Indications,
-
3ph output on indication
-
Phase Reversal Indication
-
Over Load Indication
Indications in LCD Display
-
Input High and Input low
-
Output on indication
-
Output high cutoff and Output Low Cutoff
Metering on LCD Display
-
3ph Input voltage ph to ph and ph to Neutral
-
3ph Output voltage ph to ph and ph to Neutral
-
System Frequency
-
Output Current on each phase
